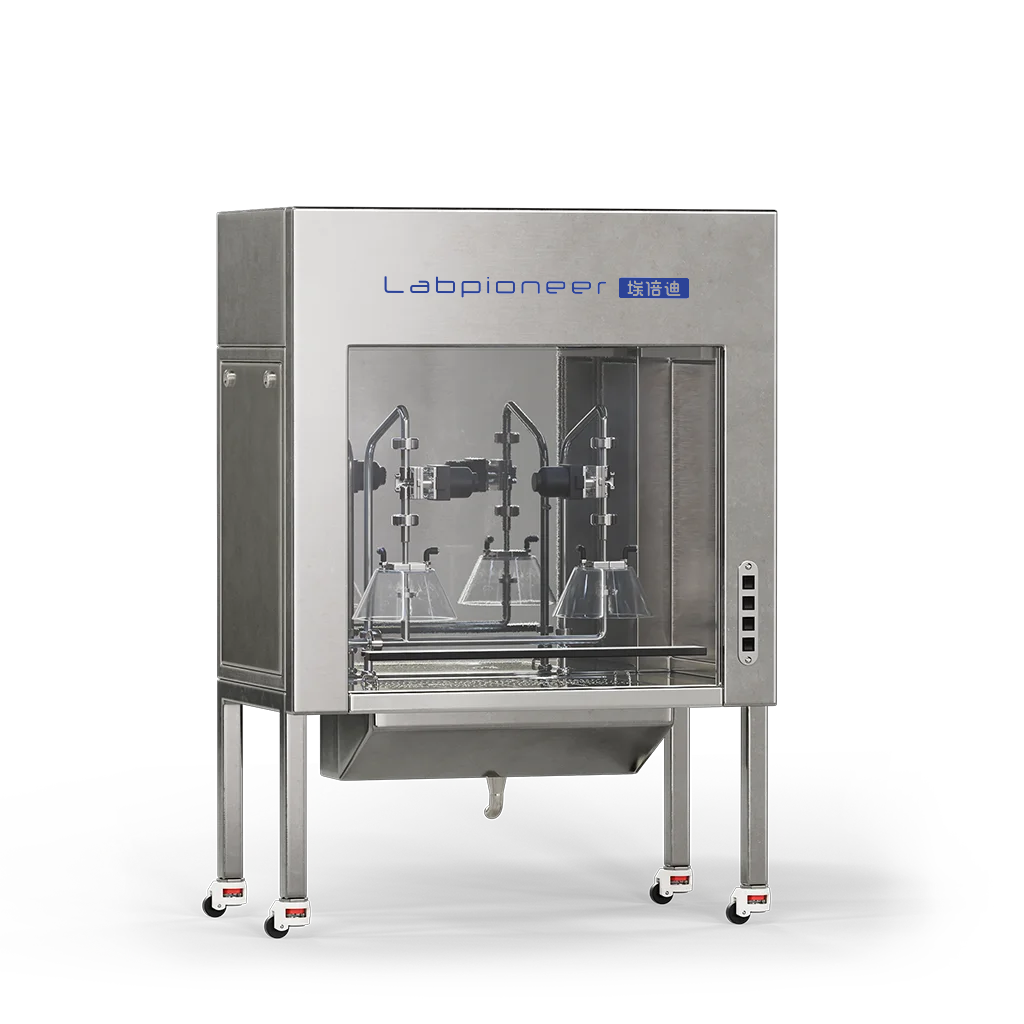

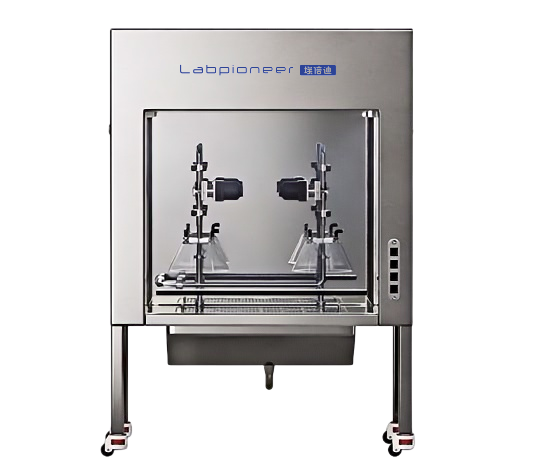

This cabinet is connected after the uht heat exchanger to meet the requirements for filling. Thanks to the solenoid valve controlling filling head and buffer tank, the filling operation becomes simple and easy with a footswitch. For more batches of samples making, a single head capping unit can be provided as an optional.

One newly-designed device for filling process zone will be added to TF-SS filling system. Thanks to a built-in O3 generator, a continuously sterilized area in diameter of 180mm can be created and guaranteed.
This cabinet is connected after the uht heat exchanger to meet the requirements for filling. Thanks to the solenoid valve controlling filling head and buffer tank, the filling operation becomes simple and easy with a footswitch. For more batches of samples making, a single head capping unit can be provided as an optional.

*Independent working unit.
*Class 100 super clean Air Cabinet for hygienic filling applications.
*Filling operation can be controlled by a foot-touch electromagnetic valve .Equipped with SIP plate pack., SIP and CIP are available for whole line.
*Built-in Buffer Tank and followed by single filling head.
*Automatic capping unit is an option using for batch production.

Type of flow	vertical laminar flow
Average wind speed	≥0.4m/s,fourth gear speed adjustable
Cleanliness	match the 209E100D standard of Federal
Filter size	1220X610X50(mm)
Lighting power	20w
UV lamp power	18w
Fan power	140 W, Small vibration, low noise
Wind	900-1400m3/h
Volume	小于60db(A)
Power	Single-phase 220V 50Hz
Countertops	304 stainless steel plate
Work area dimensions	1200(L)*610(W)*940(H)mm
Cabinet dimensions	1280(L)*670(W)*1850(H)mm
