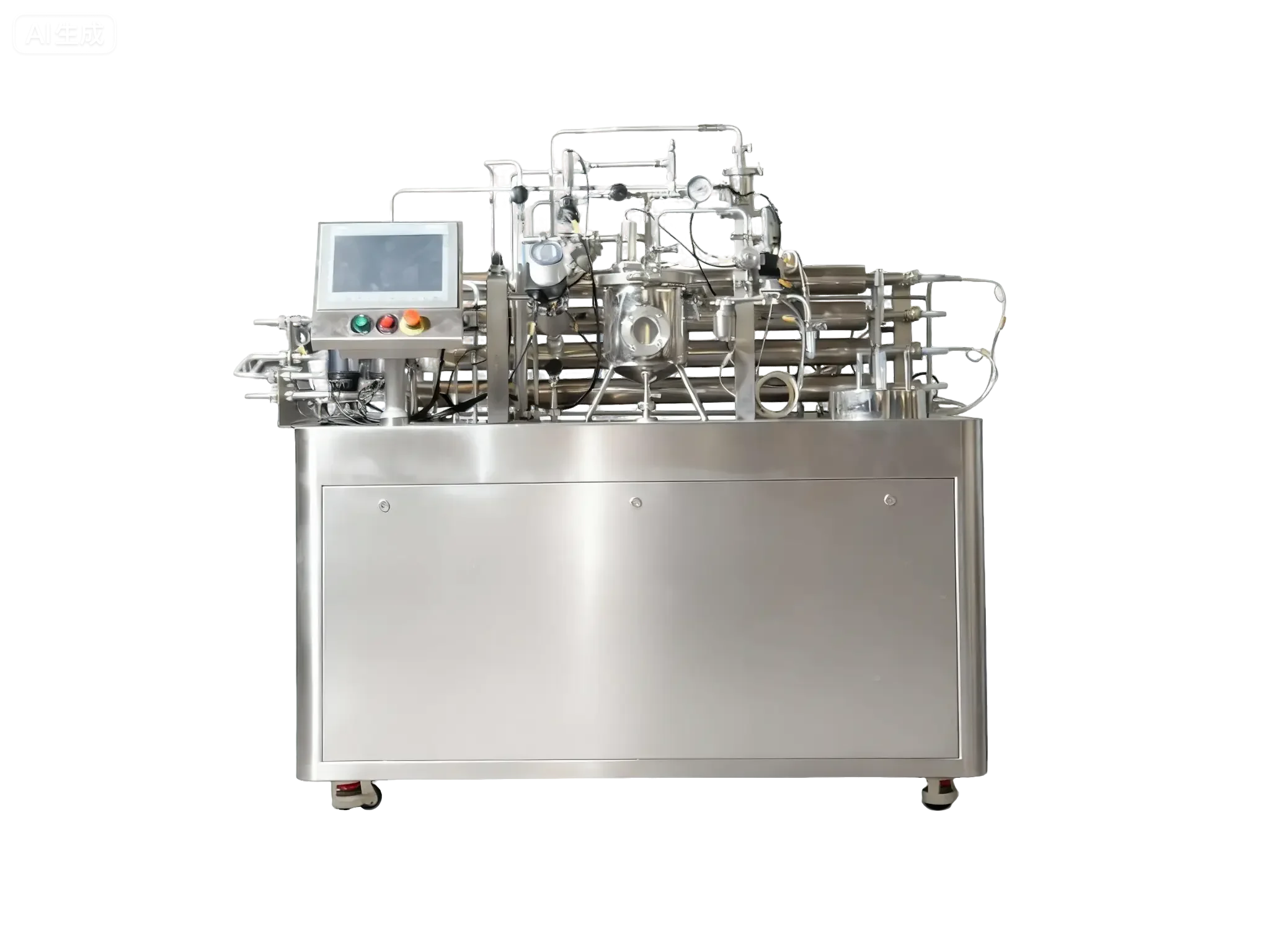

Direct stream injection machine is designed for comparisons of heat treatment with either direct heating or indirect heating at temperatures to 152℃. Just select which system is to be used from the touch panel menu and the machine is ready to use. The machine can be supplied with tubes, plates or both. Therefore, it is widely applicable for various fluids, materials with a certain viscosity and feed containing small particles.
Direct stream injection machine is designed for comparisons of heat treatment with either direct heating or indirect heating at temperatures to 152℃. Just select which system is to be used from the touch panel menu and the machine is ready to use. The machine can be supplied with tubes, plates or both. Therefore, it is widely applicable for various fluids, materials with a certain viscosity and feed containing small particles.
|
Rated capacity |
20L/H( variable from 5 to 40L),other requirement can be meet by customization |
|
Max Temperature |
150℃, adjustable |
|
Holding time |
to be determined by clients |
|
Max. Pressure |
10.0 bar |
|
Vacuum |
400mbar |
|
SIP(steam in place) |
Available |
|
CIP(clean in place) |
Available |
|
Available |
Optional |
|
Hom. Inline |
Optional (up stream/downstream homogenization) |
|
Outlet Temperature |
Adjustable |
|
Holding Tube |
5S / 10S / 30S standard equipped |
|
Material |
SUS316 stainless steel |
|
Software |
Available |
|
Power |
3 phases，Neutral & earth, 380V, 12 KW |
|
Tap Water |
outlet Pressure≥2KG, Consumption≥500L/H |
|
Cabinet Dimension |
1750（H）×1000（W）×1200（L）mm |
