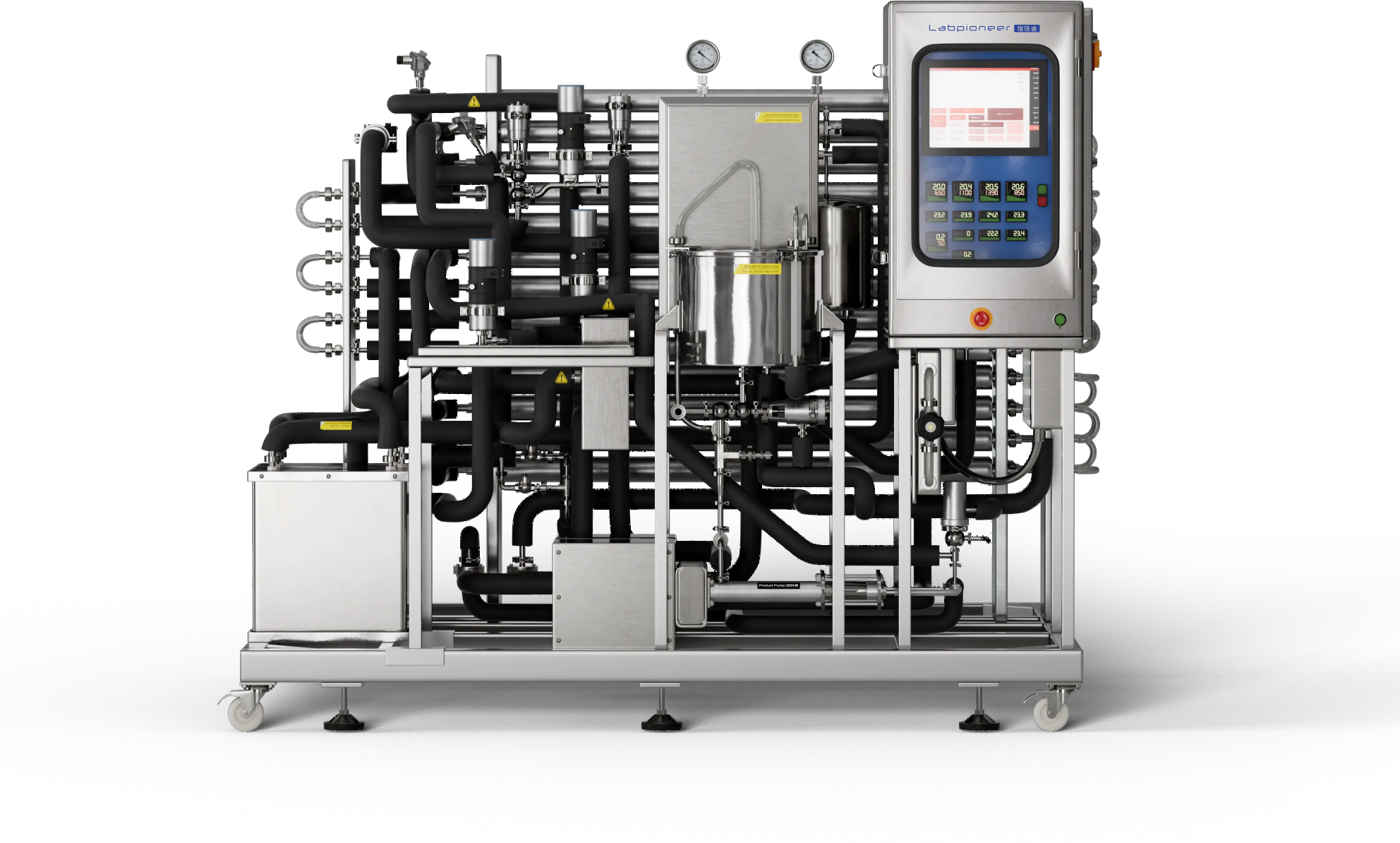

PT-100T Pilot Tube Sterilizer

DESCRIPTION
Technical Parameters

The PT-100T Series Tube/Plate Sterilizer is a complete system suitable for pasteurization, ultra-pasteurization, and ultra-high temperature (UHT) sterilization of liquid materials such as dairy products, fruit juices, tea drinks, beer, and health beverages. The material is sterilized and cooled by this equipment to extend its shelf life. Based on user requirements for sterilization, heat retention, and cooling of the material, the system can be designed in single, double, or multi-stage configurations. This equipment offers high thermal recovery efficiency, a compact structure, small footprint, flexible process changes, and easy operation and maintenance, making it highly favored by users. Additionally, we can manufacture ultra-high temperature sterilization equipment with CIP systems and aseptic packaging as fully automated (smart) solutions according to customer needs.

Standard Capacity	100L/H (Adjustable from 20-100L/H), other capacities customizable according to customer requirements.
Sterilization Temperature	Up to 150°C, adjustable
Sterilization Time	Configured according to customer requirements
Maximum Pressure	10.0bar
SIP Function	Available
CIP Function	Available
Online Filling	Optional
Online Homogenization	Optional (pre-homogenization/homogenizer)
Outlet Temperature	Adjustable
Hold-up Tube	Standard 5S/10S/30S
Material	SUS316 stainless steel
Data Software	Available
Power Supply	3-phase power supply, 380V, with neutral and ground wires
Design Power	12kw
Tap Water Requirements	Pressure ≥ 2 bar, Flow rate ≥ 500L/H
Overall Dimensions	Customized according to requirements
