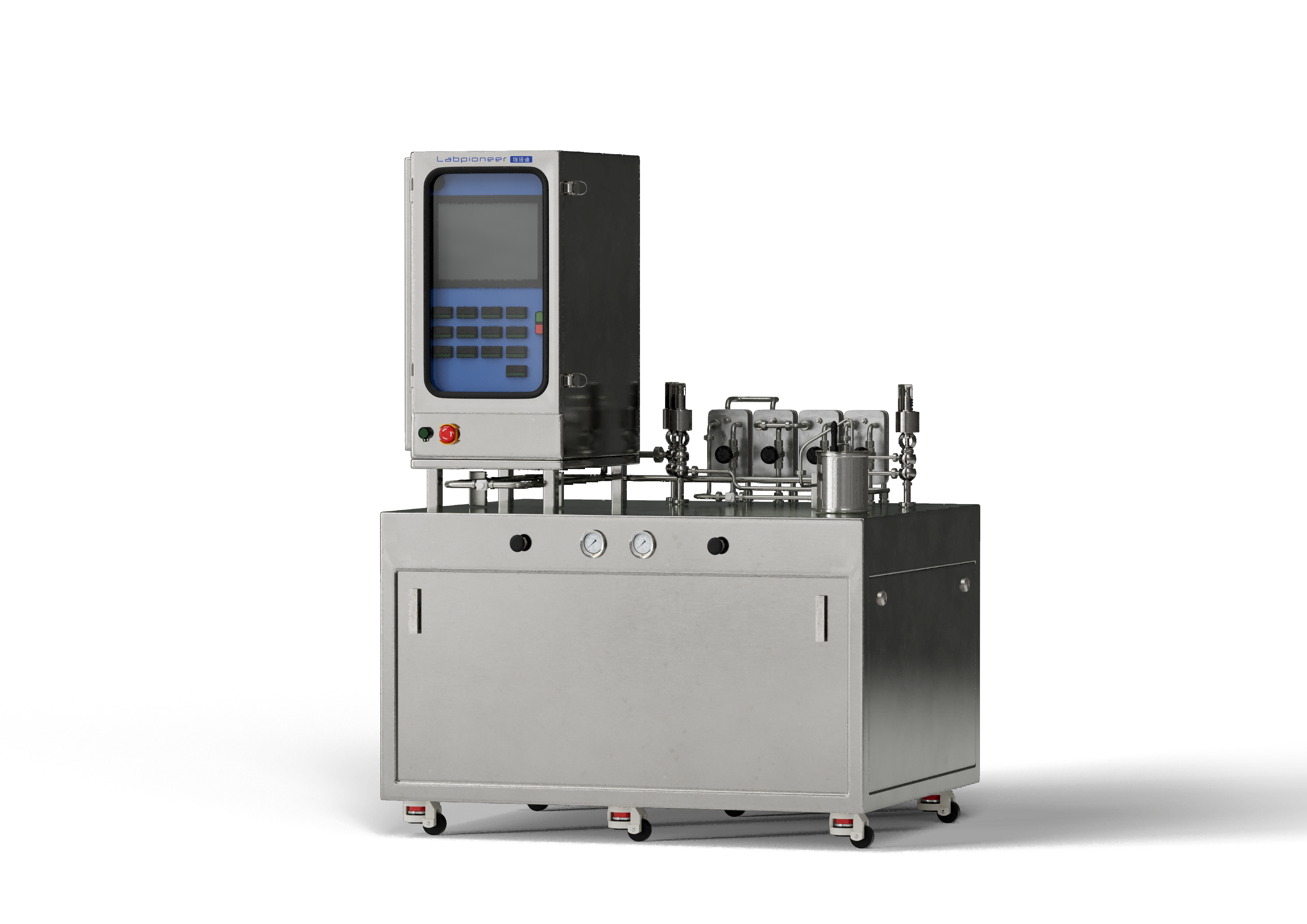

The PT-20P Series UHT Plate Sterilizer fully simulates industrial production conditions. The design structure includes a preheating section, heating section, and cooling section. It can be equipped with online homogenization and aseptic filling according to customer requirements. The equipment is compact and forms a self-contained system, with only tap water and electricity required for external connections. The control panel provides centralized control and can be connected to a computer for software-based control of the main unit.
▪ External devices only require tap water and electricity.
▪ Feed volume starts from 3-5 liters, reducing experiment time.
▪ Miniature and mobile laboratory, occupying only 2-3 square meters of floor space.
▪ The control panel provides centralized control and can be connected to a computer for control. Experimental data can be printed, recorded online, downloaded, and automatically generate curve analysis, which is permanently saved.
▪ Automated control with high levels of automation.
▪ Accurate experimental data with good repeatability, directly scalable to industrial production.
▪ Complies with European CE standard certification.
|
Standard Capacity |
20L/H (Flow rate adjustable from 5-40L), other capacities customizable |
|
Sterilization Temperature |
Up to 150°C, adjustable |
|
Sterilization Time |
Configured according to customer requirements |
|
Maximum Pressure |
10.0 bar |
|
SIP Function |
Available |
|
CIP Function |
Available |
|
Online Filling |
Optional |
|
Online Homogenization Function |
Optional (pre-homogenization/post-homogenization) |
|
Outlet Temperature |
Adjustable |
|
Power Supply |
3-phase power supply, 380V, with neutral and ground wires |
|
Design Power |
13KW |
|
Overall Dimensions |
1650（H）×960（W）×1200（L）mm |
|
Plate Dimensions |
70×190 mm |
|
Hold-up Tube |
Standard 5S / 10S / 30S |
|
Data Software |
Available |
|
Material |
SUS 316stainless steel |
|
Tap Water Requirements |
Pressure ≥ 2KG, Flow rate ≥ 500L/H |
