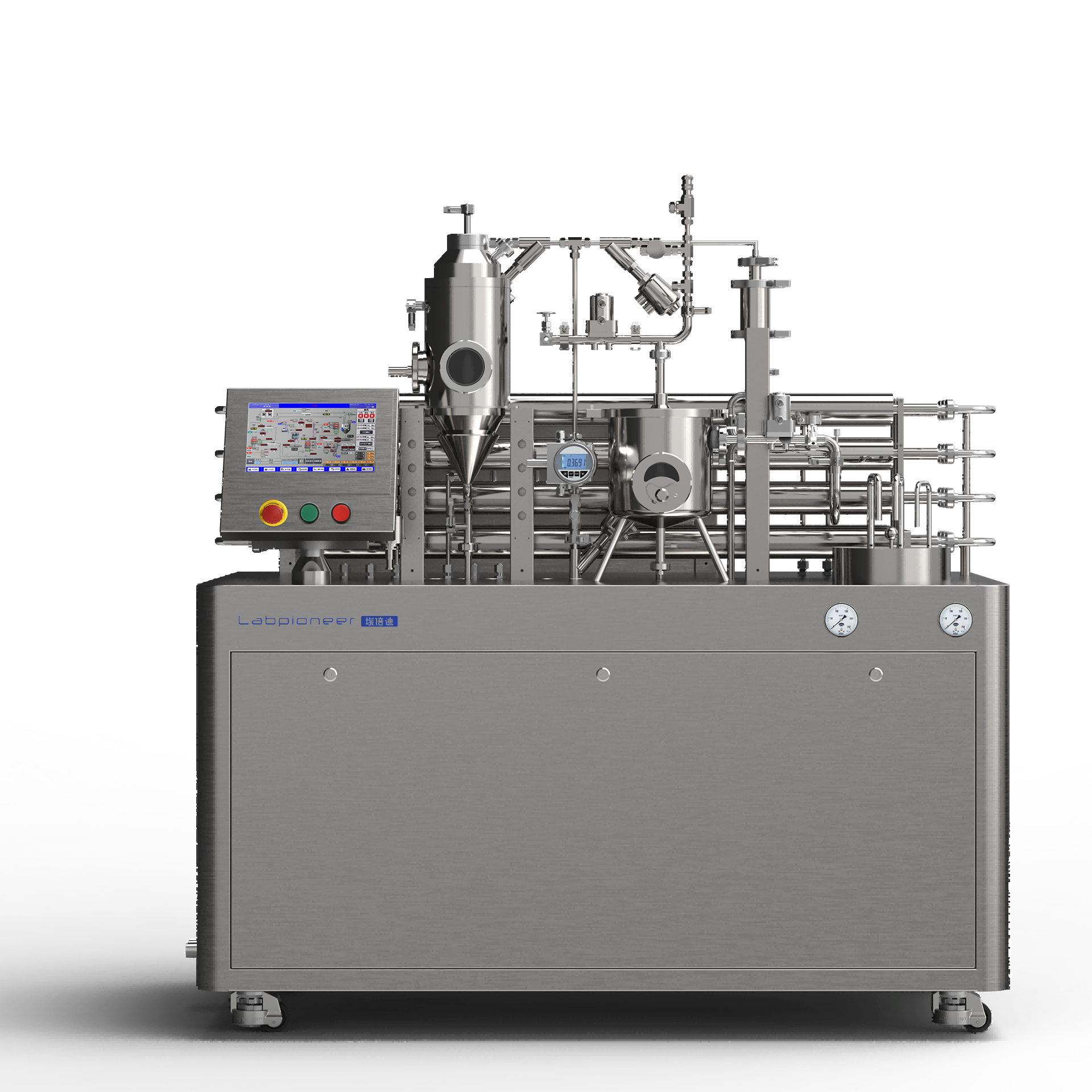

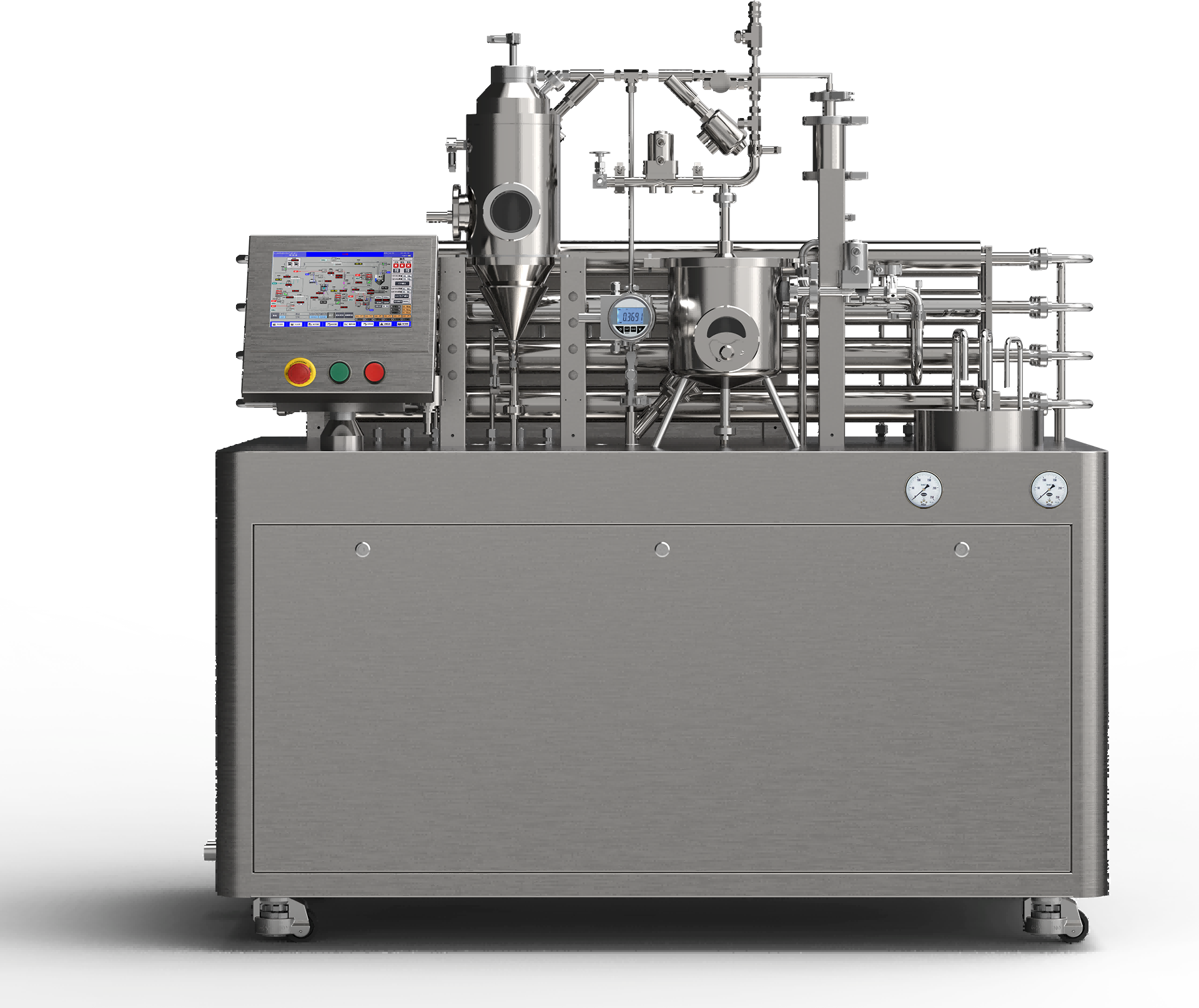

PT-50DT Mini UHT Steam Injection Sterilizer

Home > Product > Food Equipment > Single Lab Machine > PT-50DT Mini UHT Steam Injection Sterilizer

Video

PT-50DT Mini UHT Steam Injection Sterilizer

DESCRIPTION
Technical Parameters

The DSI Steam Injection (Infusion) Sterilizer offers both direct and indirect heating modes, with the maximum sterilization temperature reaching up to 150°C. The panel control allows for easy and quick switching between the two modes. The indirect heat exchange mode offers options of tubular, plate, and tube-plate hybrid configurations. Therefore, this equipment is widely applicable to various fluid products and materials with a certain viscosity.

Standard Capacity	30L/H (Flow rate adjustable from 5-40L)
Sterilization Temperature	Up to 150°C, adjustable
Sterilization Time	Configured according to customer requirements
Maximum Pressure	10.0bar
Vacuum level	400mbar
SIP Function	Available
CIP Function	Available
Online Filling	Optional
Online Homogenization Function	Optional (pre-homogenization/homogenizer)
Outlet Temperature	Adjustable
Hold-up Tube	Standard 5S/10S/30S
Material	SUS316 stainless steel
Data Software	Available
Power Supply	3-phase power supply, 380V, with neutral and ground wires
Design Power	12kw
Tap Water Requirements	Pressure ≥ 2 bar, Flow rate ≥ 500L/H
Overall Dimensions	1750(H)1000(W)1200(L)mm
