Experienced supplier of TW-RCC30 Rotating Cone Low Temperature Concentrator Evaporator

TW-RCC30 Rotating Cone Low Temperature Concentrator Evaporator

Home > Product > Food Equipment > Single Lab Machine > TW-RCC30 Rotating Cone Low Temperature Concentrator Evaporator

Video

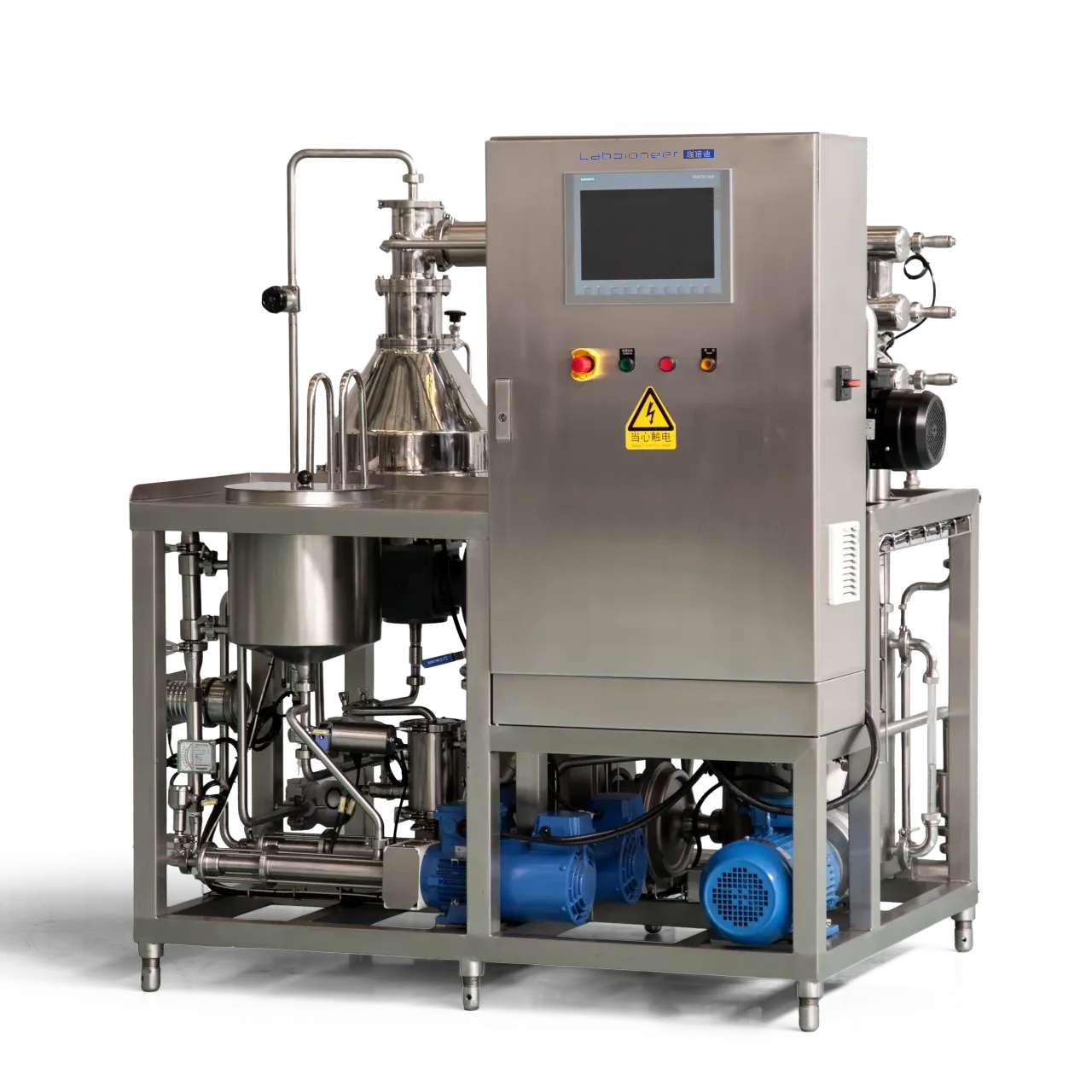

TW-RCC30 Rotating Cone Low Temperature Concentrator Evaporator

DESCRIPTION
Technical Parameters

Rotating Cone Low-Temperature Concentration Evaporator is a centrifugal thin film evaporator. Its unique design can produce thinner liquid films than any other evaporator (film thickness as low as 0.1mm). The liquid film formed by the liquid distributed on the surface of the rotating cone by centrifugal force can evaporate within 1 second, reducing the thermal contact time of the product to 1 second. The evaporator has a compact structure and is particularly suitable for the concentration of heat-sensitive, high-value and viscous products.

with traditional rising /falling film evaporators, the evaporator residence time is shorter, the thermal impact is lower, and the product range is wider

Device Model	LTCE 50	LTCE100	LTCE200
Evaporation	10-50	50-100	50-200
Evaporation temperature	40- 50℃	40- 50℃	40- 50℃
Drum diameter	300	400	600
Speed	1400	800	600
Feed rate	20-70	50-200	80-400
Equipment power	5	7	10
Device size	1400x1000x1450	2000x1200x1500	2100x1200x1600
Equipment weight	650	800	950
