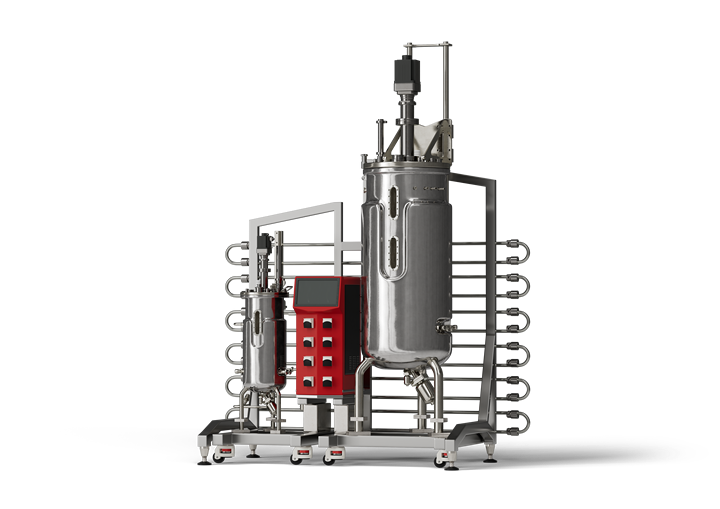

The TW-XJD10 fermenter is constructed with a stainless steel body and features an integrated design that offers multiple functions. It is compact and aesthetically pleasing, with no dead corners inside the tank. It is particularly suitable for laboratory use and can be used independently or as a seed tank in conjunction with other fermenters. Additionally, it can be configured with a draft tube to expand into an airlift fermenter.
|
Full volume |
5L/7L/10L/15L… |
|
Loading factor |
0.65~0.8 Optimum 0.7 |
|
Surface roughness |
Inner surface polishing Ra0.4 um (mechanical polishing or electrolytic polishing). Outer surface polishing Ra0.6~0.8 um (matte treatment), or sandblasting |
|
Working tank pressure |
0.01Mpa ~0.05Mpa . With pressure gauge, manual adjustment (standard) With pressure sensor, proportional control valve and pneumatic valve automatic adjustment (optional) |
|
Material |
The parts in contact with the material are SUS316L stainless steel, and the others are SUS304 |
|
Mixing method |
Upper mechanical stirring (or lower magnetic coupling stirring), single end double mechanical seal. Two groups of six stirrers, three baffle plates, with mechanical defoaming slurry |
|
Temperature control |
PID digital control, circulating pump for forced water circulation, solenoid valve automatic control, PT100 temperature sensor detection |
|
Sterilization method |
Sterilize in place or autoclave |
|
Temperature control range |
5~65±0.2℃, resolution 0.1℃ |
|
Sterilization temperature |
100 ~130℃ |
|
Stirring speed |
50~1000rpm±5%*Maximum speed, resolution 1rmp, inverter adjustment. Speed is determined according to tank size and material requirements |
|
pH Control |
2~12±0.02PH, resolution 0.01PH. PH, acid and alkali linkage control. Peristaltic pump automatically adjusts to add acid and alkali. Mettler PH sensor for signal transmission. |
|
DO control |
0~100%±5%, resolution 0.1%, DO and speed linkage control, Mettler DO sensor for signal transmission |
|
Foam Control |
Automatic control and alarm, online monitoring of stainless steel electrodes, automatic addition of defoaming agent by peristaltic pump |
|
Air flow |
Mass flow meter, pneumatic valve automatic adjustment. Inlet filter, exhaust filter, with PALL filter element, filtration accuracy 0.02 um |
|
Tank configuration |
The inoculation adopts the flame inoculation port of alcohol lamp. The sampling valve and tank bottom valve can be sterilized at any time. Equipped with standard PH, DO electrode side interface, foam level, temperature sensor interface, feed interface, side wide-angle observation mirror, equipped with safety lighting lamp |
