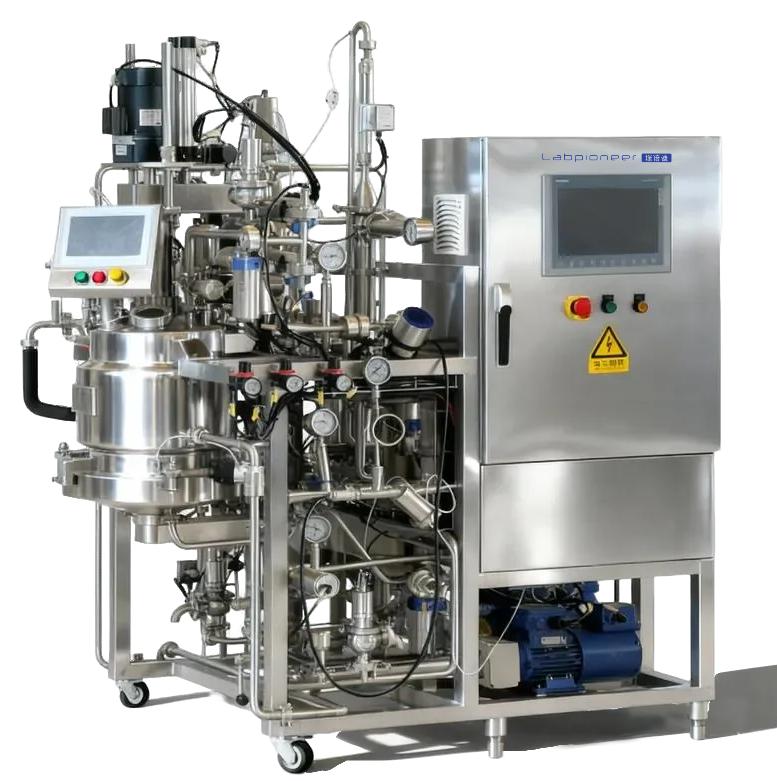

This extraction tank can achieve six functions: drip extraction, cold water soaking extraction, semi-soaking extraction, cyclic soaking extraction, pressurized extraction, and aroma recovery. It is mainly used for the extraction of coffee, tea, sauces, and various concentrates.

Product Features

Multi-functional extraction modes and parameters can be set.

Customizable size as needed.

Suitable for small batch experiments.

Easy to install, operable once connected to public facilities.

Simple operation using a touch screen, capable of storing multiple process parameters.

Equipped with a condenser for aroma recovery.

Total power: 7kw/380V

Extraction temperature: Room temperature to 110℃

Design pressure: -0.08 to 0.1MPa

Extraction tank: 100L volume, bottom opening for slag discharge, diameter 500mm

Stirring speed: 20-60r/min, variable frequency control

Spray flow rate: 100-800L/H
