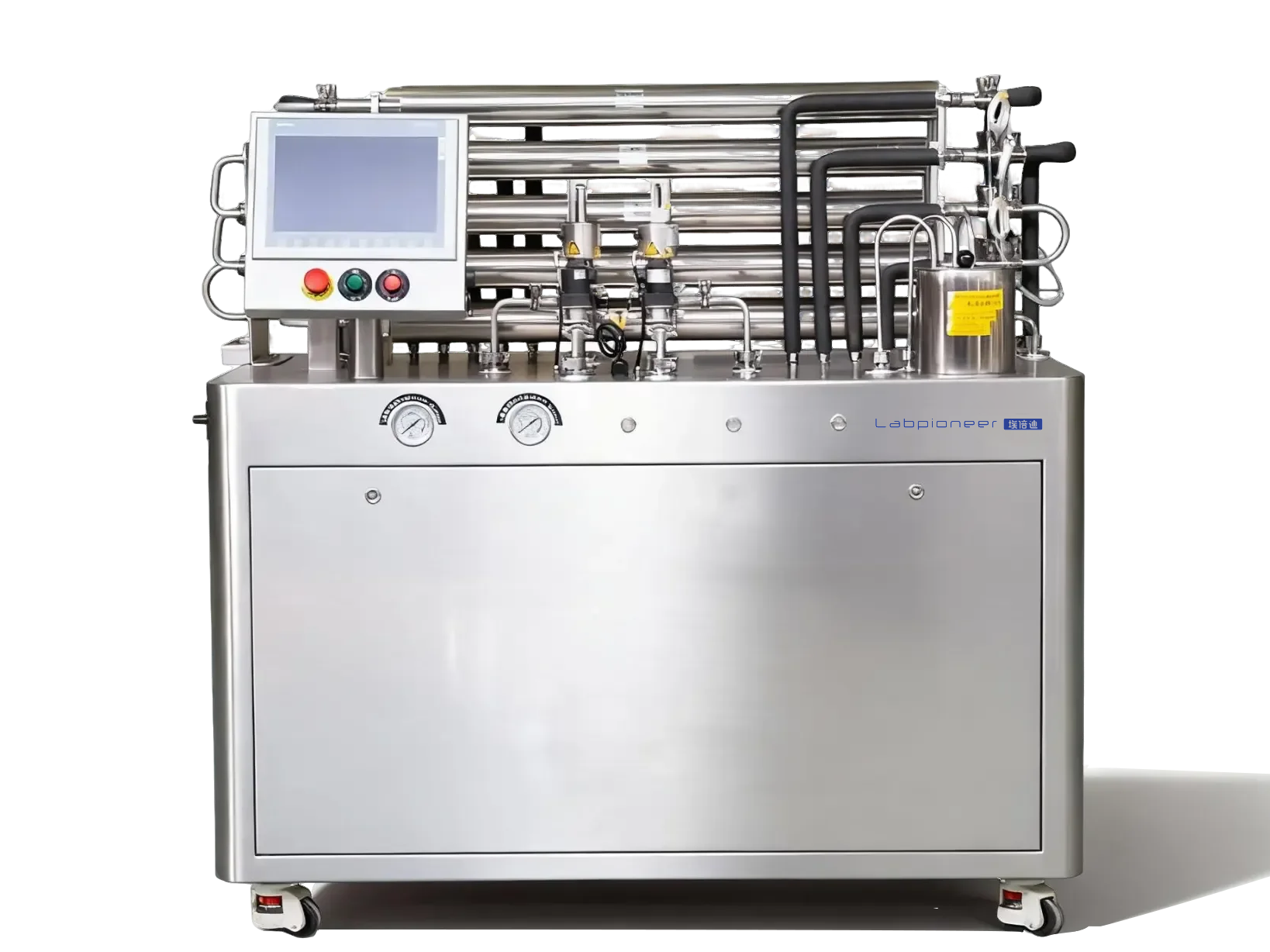

PT-20T Mini UHT Tubular Sterilizer

DESCRIPTION
Product Features
Technical Parameters

The PT-20T Series UHT Tubular Sterilizer fully simulates industrial production conditions. The design structure includes a preheating section, heating section, and cooling section. It can be equipped with online homogenization and aseptic filling according to customer requirements. The equipment is compact and forms a complete system, with only tap water and electricity required for external connections. The control panel provides centralized control and can be connected to a computer for software-based control of the main unit. The tubular components are manufactured according to custom specifications, creating a defined turbulence that improves heat exchange efficiency.

▪ The system includes a built-in hot water generator and chiller, with the option to add online homogenization and aseptic filling according to customer requirements. The compact system forms a self-contained unit.
▪ External devices only require tap water and electricity.
▪ Minimum feed volume is 3-5 liters, reducing experiment time.
▪ Miniature and mobile laboratory, occupying only 2-3 square meters of floor space.
▪ The tubular components are manufactured to custom specifications, ensuring the creation of turbulence similar to industrial-scale equipment, allowing for more precise temperature control.
▪ The control panel provides centralized control and can be connected to a computer for control. Experimental data can be printed, recorded online, downloaded, and automatically generate curve analysis, which is permanently saved.
▪ Automated control with high levels of automation.
▪ Accurate experimental data with good repeatability, directly scalable to industrial production.
▪ Complies with European CE standard certification.

Standard Capacity	20L/H (Flow rate adjustable from 5-40L), other capacities customizable
Heating Tube Size	860mm×Φ 14mm/8mm
Particle Throughput	Maximum 2 mm soft particles
Sterilization Temperature	Up to 150°C, adjustable
Sterilization Time	Configured according to customer requirements
Maximum Pressure	10.0 bar
SIP Function	Available
CIP Function	Available
Online Filling	Online filling
Online Homogenization	Optional (pre-homogenization/post-homogenization)
Outlet Temperature	Adjustable
Hold-up Tube	Standard 5S / 10S / 30S
Material	SUS 316stainless steel
Data Software	Available
Power Supply	3-phase power supply, 380V, with neutral and ground wires
Design Power	13KW
Tap Water Requirements	Pressure ≥ 2KG, Flow rate ≥ 500L/H
Overall Dimensions	1700（H）×960（W）×1200（L）mm
